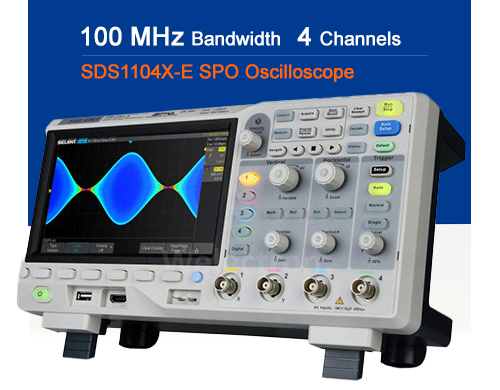

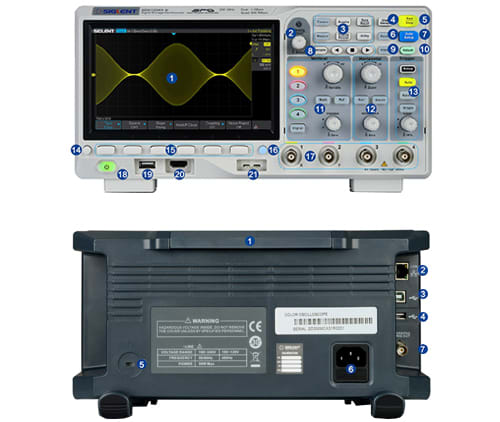

SDS1104X-E Super Phosphor Oscilloscope

Features:

• 100 MHz Bandwidth
• 4 Channels
• 1 GSa/s Sampling Rate
• Capture rate: 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
• Memory depth: 14 Mpts (single-channel); 7 Mpts/CH (dual-channel)
• Math co-processor speeds front panel operation
• Serial trigger and decoder I2C, SPI, UART, CAN, LIN
• On-screen Bode plot and web-browser control (standard on 4 channel only)
• USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus(Siglent MSO)
• 7 inch TFT–LCD display (800 x 480 pixels)

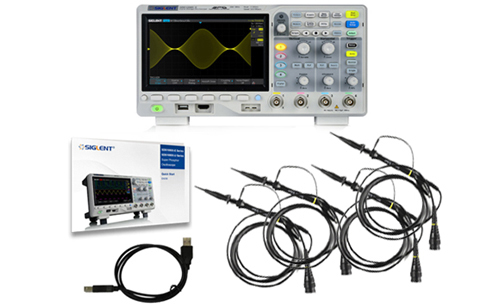

• 4 pcs passive probe PP510

The SDS1000X-E Series employs a new generation of SPO (Super- Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It comes with a minimum vertical input range of 500 uV/div, an digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The series also employs a 256-level intensity grading display function, color temperature display mode and supports multiple powerful triggering modes including serial bus triggering.

The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 1 million points FFT math function that gives very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response.

Deep Memory Depth, High Capture Rate
The oscilloscope can easily capture the transients or low-probability events and using max record length of up to 14 Mpts, users are able to oversample to capture for longer time periods at higher resolution.

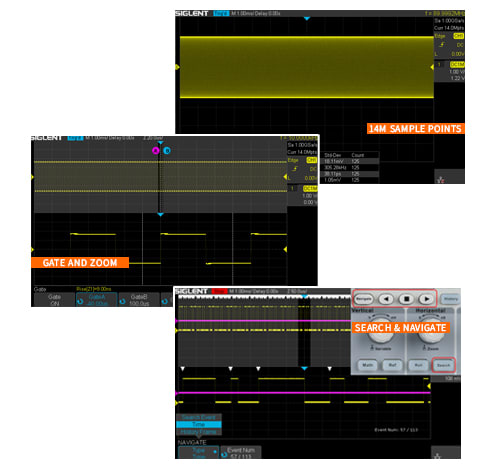

Revolution in Data Analysis Processing

• True fast measurement and math to all of 14M sample points resulting in minimal distortion on analysis
• faster data operations with hardware co-processor
• 1 M point FFT operation
• Support Zoom, Gating, Math measurement and statistics
• Support 38 automatic measurement functions

Power Loop Response Analysis (Bode Plot)
Siglent offers a solution for stability measurement: Signal source Power loop measurement with standard Free Bode Plot II software. Features higher measurement sensitivity and accuracy, variable excitation scan mode, user-friendly UI design, plus list and cursor measurements that are more intuitive.

Standard Serial Decoding
Serial decoding is Free in the SDS1000X-E Series and includes IIC, SPI, UART, CAN, and LIN. The waveform and data can be displayed at the same time and the detailed decoding information is displayed in the form of a list, and the data can be stored and exported.

Powerful Debugging and Analysis Capabilities

• Event search and navigation to quickly locate events of interest
• MSO logic analyzer integration, mixed signal analysis tool
• The combination of history and sequence mode, quickly capture abnormal waveforms
• Hardware-based Pass/Fail mode for long-term monitoring signals

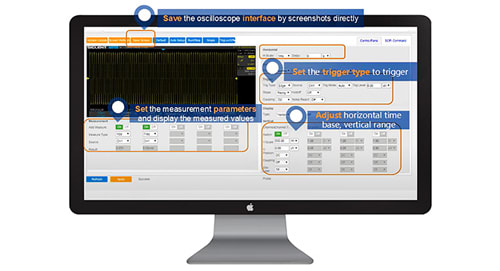

Remote Control via Web Pages or Mobile Phone
With built-in Web Server, there is no need to install driver software and PC software. You can control the instrument, observe waveforms, obtain measurement results using the browser remotely. Especially when instruments used in high pressure, high temperature and other special environments. The SDS1000X-E supports both web and mobile web layouts, making it easier to control the instrument even on your phone.

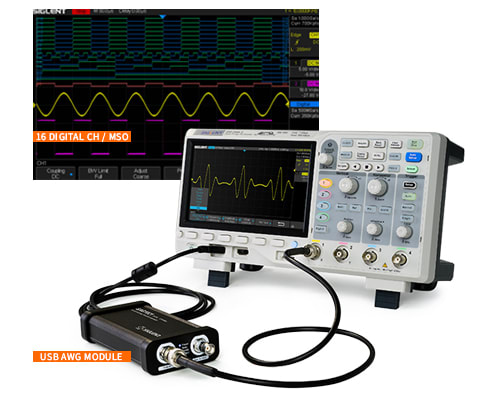

Optional Series Features:

• USB WIFI adapter 802.11b/g/n, WPA-PSK
• USB AWG module One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts
