Uni-T UTG2122B Arbitrary Waveform Generator

Features and Specifications

• 120 MHz sine waveform output, 1 µHz full-band resolution
• 320MSa/s sample rate, 16 bits vertical resolution
• Unique Expression Output Function
• Standard dual channels, supporting stand-alone or channel-coupling output mode
• 16Mpts arbitrary waveform length
• Versatile modulation choices: AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, QAM
• 4.3 Inches TFT LCD,WVGA (800x480)
• Standard Ports: USB Host, USB Device, LAN

UTG2122B Overview

The Uni-T UTG2122B arbitrary waveform generator (AWG) is a powerhouse of features designed to meet the demands of complex and extensive applications. With an impressive frequency range up to 1200MHz, it offers many basic waveforms, including sine waves, square waves, ramps, pulses, harmonics, noise, DC signals, expressions, and arbitrary waveforms. This high-frequency capability opens up a world of limitless experimentation possibilities.

The device's 16-bit vertical resolution takes precision and accuracy to a whole new level, making it an ideal choice for engineers and researchers working on critical and high-precision projects. It reduces signal distortion and enables realistic simulations of analog signals.

One of the standout features of the Uni-T UTG2122B is its expression output function. This allows for complex waveform calculations by combining numbers, operational characters, class symbols, and free variables. For instance, you can express output as $$V_{out} = f(x)$$, with expressions like $$f(x) = (x-1) * x * (x+1)$$.

The device also offers a world of modulation possibilities with multiple analog and digital modulation functions, including AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, and QAM. This versatility empowers you to explore various dimensions in your testing and experimentation.

The Uni-T UTG2122B comes loaded with an extensive library of signal shapes and waveform options, providing you with a diverse range of signals to work with. With over 160 different signal shapes, you have the flexibility to create unique and intricate waveforms.

You can customize your arbitrary signal with up to 16Mpts using free downloadable software. This feature allows you to tailor your signals precisely to your unique requirements. The device also offers efficient channel coupling. When you adjust the frequency, amplitude, or phase of one channel, the other channel automatically synchronizes, simplifying your testing process.

The device also offers advanced sweep functionality and harmonic output. You can explore sweeping possibilities with linear and logarithmic scan types. Additionally, the built-in 16th harmonic output function enhances your signal generation capabilities, providing harmonic-rich waveforms for your experiments.

Discover sweeping possibilities with linear and logarithmic scan types. In addition, the integrated 16th harmonic output function amplifies your signal generation capabilities.

The Uni-T UTG2122B arbitrary waveform generator is your path to precision, versatility, and dependability. Don't miss the opportunity to enhance your work and achieve outstanding results.

UTG2000B Series Multimeter Panel

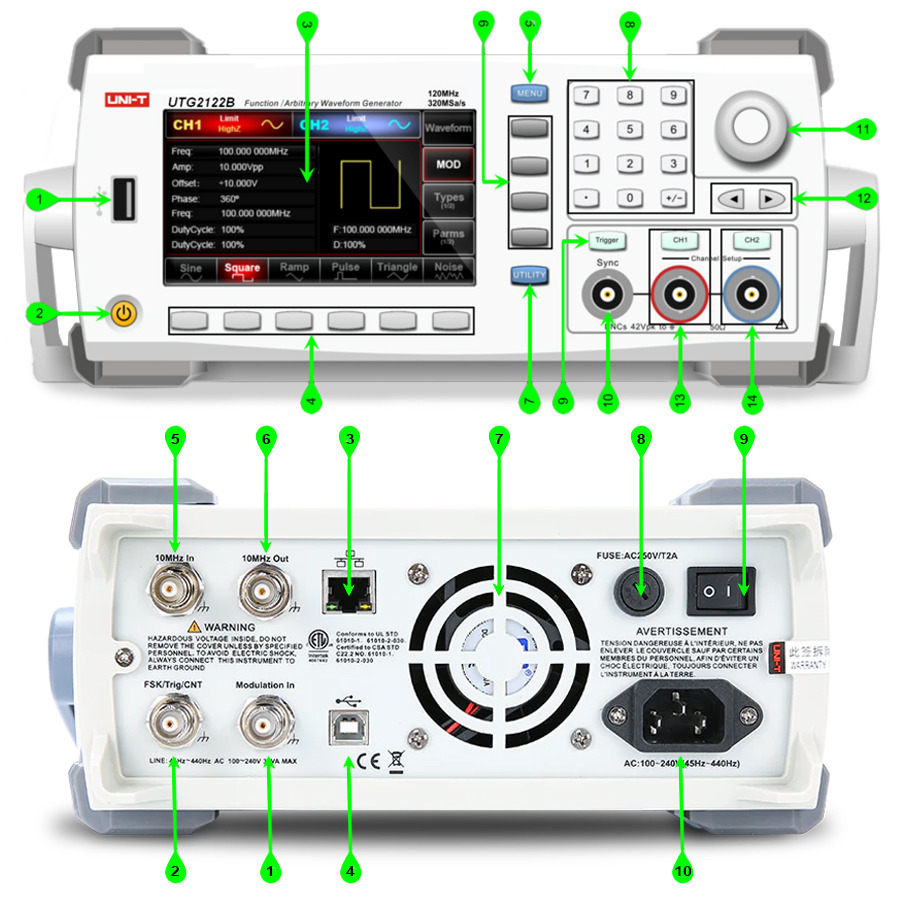

Front Panel

1. USB port
2. ON/OFF
3. Display Screen
4. Main Menu Button
5. Secondary Menu Button
6. Utility and setting
7. Number buttons
8. Manual trigger
9. Sync output terminal
10. Functional knob
11. Arrow button
12. CH1 output terminal
13. CH2 output terminal

Rear Panel

1. External analog modulation input connector
2. External digital modulation/ frequency meter connector
3. LAN port
4. USB port
5. External 10MHz input connector
6. Internal 10MHz output connector
7. Ventilation vent
8. Fuse
9. Power switch
10. AC power supply

The UUTG2000B Series

The UTG2000B series is capable of generating signals that are highly accurate, stable, clean, and have minimal distortion. This series of devices has a sampling rate of 320 MS/s and a vertical resolution of 16-bit. It can deliver high-frequency square waves with rapid ascending and descending edges. The device's user-friendly interface, competitive features, and intuitive graphical display allow users to enhance their productivity.

• Advanced-Series
  • UTG2062B - 60MHz, 2Ch, Arbitrary Waveform Generator
  • UTG2082B - 80MHz, 2Ch, Arbitrary Waveform Generator
  • UTG2122B - 120MHz, 2Ch, Arbitrary Waveform Generator

What's in the Box

• UTG2122B Arbitrary Waveform Generator
• Power cord
• USB2.0 printing cable
• BNC straight-through cable
• BNC to alligator clip cable
