The 7526A Precision Process Calibrator calibrates a wide range of pressure gauges, temperature transmitters, digital process simulators, multimeters and more.

Fluke 7526A Precision Process Calibrator Key Features:

• Sources and measures dc voltage, current, resistance, RTDs and thermocouples
• Precision pressure measurement using Fluke 700 or 525A-P series pressure modules
• Includes 24 V dc transmitter loop power supply
• Measures 4-20 mA loop current
• Includes automated switch-test function
• Accepts ITS-90 coefficients for accurate SPRT measurements
• Compatible with MET/CAL® Calibration Software
• Intuitive user interface

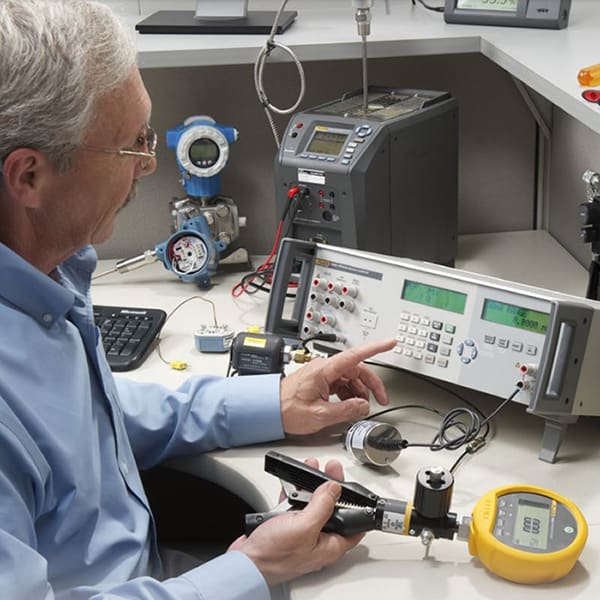

Versatility, precision and value, combined into a single benchtop process calibration tool

The Fluke Calibration 7526A Precision Process Calibrator offers the best balance of economy and accuracy for benchtop calibration of temperature and pressure process instrumentation. Easily calibrate RTD and thermocouple readouts, pressure gauges, temperature transmitters, digital process simulators, data loggers, multimeters and more.

• Sources and measures dc voltage, current, resistance, RTDs and thermocouples
• Precision pressure measurement using Fluke 700 or 525A-P series pressure modules
• Includes 24 V dc transmitter loop power supply
• Measures 4-20 mA loop current
• Includes automated switch-test function
• Accepts ITS-90 coefficients for accurate SPRT measurements
• Compatible with MET/CAL® Calibration Software

A “best fit” for your process calibration requirements

In today’s competitive global markets with the need to continuously cut manufacturing costs, precise temperature and pressure process control is required to maintain product quality, reduce waste and ensure compliance to regulatory standards. Regular calibration of a wide variety of process measurement instrumentation is required to meet these standards.

The 7526A Precision Process Calibrator puts all the necessary tools for process instrumentation calibration into one box. The 7526A simulates and measures nine RTD and thirteen thermocouple types, accurately measures pressure to within 0.008 % of reading when combined with Fluke 525A-P Series Pressure Modules, sources and measures dc voltage from 0 to 100 V to within 0.004 % of reading, sources dc current from 0 mA to 100 mA, accurately measures dc current to within 0.01 % from 0 mA to 50 mA and supplies 24 V dc loop power. Combined with MET/CAL® Calibration Software, the 7526A is an efficient, versatile and affordable calibrator that truly is a best fit for your process calibration requirements.
