• >1.5 GHz Probe Bandwidth
• <267 ps Rise Time
• <1 pF Input Capacitance
• <1 MΩ Input Resistance
• –8 V to +8 V Input Dynamic Range
• –10 V to +10 V DC Input Offset Range
• Small Compact Probe Head for Probing Small Geometry Circuit Elements
• DUT Attachment Accessories Enable Connection to SMDs As Small As 0.5 mm Pitch
• Robust Design for Reliability

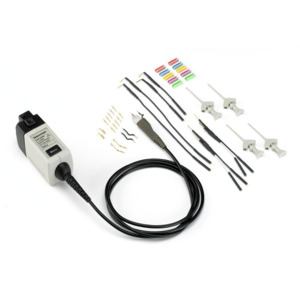

TAP1500 Single-ended Active FET Probe provides excellent high-speed electrical and mechanical performance required for today's digital system designs. Specifically designed for use and direct connection to oscilloscopes with the TekVPI probe interface, the TAP1500 Active FET probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems:

• Lower DUT loading effects with <1 pF input capacitance and 1 MΩ input resistance
• Versatile DUT connectivity for attaching to small SMDs
• Preserves instrument bandwidth at the probe tip for <1 GHz oscilloscopes
