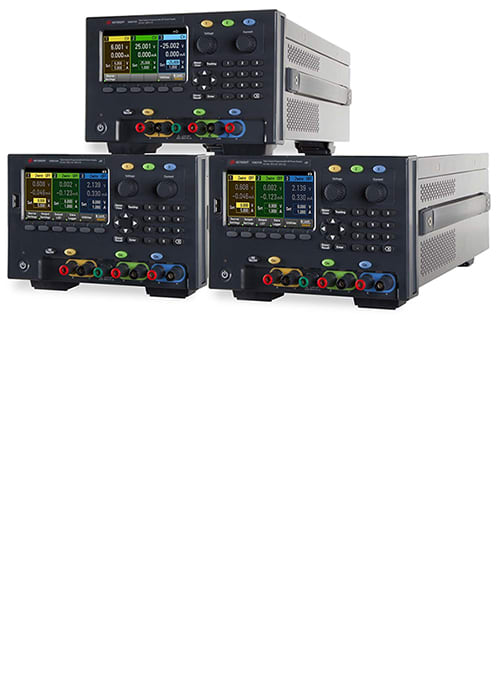

Keysight E36300 Series Triple Output Bench Power Supplies

For over half a century, Keysight has revolutionized engineer's approaches to validating designs, resolving challenges, and guaranteeing product excellence with its DC power supplies. The E36313A high current triple output solution is tailored for your bench applications. Featuring minimal output ripple and noise alongside precise voltage and current measurements, it empowers confident testing and fuels your next breakthrough.

Specifications & Features

• 160 Watts maximum from 3 outputs:

  • 1 x 0 to 6 V, 0 to 10 A

  • 2 x 0 to 25 V, 0 to 2 A

• Clean, reliable power

  • Low output ripple and noise

  • Excellent programming/readback accuracy

  • Excellent line/load regulation: 0.01%

  • 2-wire or 4-wire remote sense

  • Over voltage, over current, and over temperature protection

• Convenient benchtop capabilities

  • Three independent power supplies in one box

  • Low acoustic noise

  • Auto series/parallel connections

  • Front and rear output terminal

• Intuitive and easy to use interfaces

  • 4.3-inch LCD color display

  • Color-coded channels

  • Individual knobs for voltage and current

  • E3631A code compatible

  • LAN (LXI), USB and GPIB (optional)

• Advance characterization

  • Data logging

  • Output sequencing

  • LIST mode

  • Low current range measurement

Simplify set up and operation with an intuitive and easy-to-use front-panel interface and connectivity

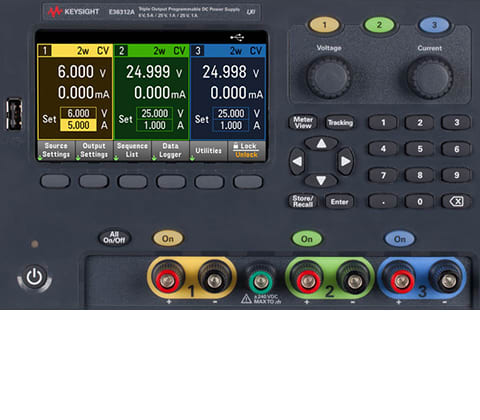

The 4.3-inch LCD color display shows the voltage and current of all three channels with different views. Color coding of the knobs, display and binding posts helps avoid setup and connection errors. Two individual knobs for voltage and current with rotary encoder control for precise setting and keypad allows quick adjustments and configurations in less time.

Reduce space, cost and noise with convenient benchtop capabilities

All three outputs on the E36300 Series can be turned on and off independently, so you are essentially getting three power supplies in one instrument which saves cost on maintenance. It also saves space on the bench as you can power up multiple analog/digital circuitries or devices with a single instrument.

Data logging and output sequencing for increased productivity (E36312/13A models only)

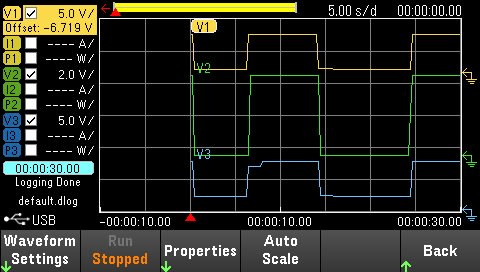

The E36312/13A simultaneously logs data on all three DC outputs, both voltage and current measurements, spaced by a programmable sample period, to the large color display and

a file. Export the data logger display in PNG, BMP file formats

or export the time stamped data as a CSV file for reports and documentation. The built-in battery backup real time clock allows for proper time-stamping of logged data.

Which Model Is For You?

In The Box

• E36313A Triple Output Bench Power Supply

• Connector Kit (P/N: E36312-89001) with Three Terminal Block Connectors:

  • 10 A, 3.5 mm female 4-pin (1ea)

  • 12 A, 5 mm female 4-pin (1ea)

  • 15 A, 5 mm female 8-pin (1ea)

• AC power cord (based on destination country)
