Keysight EDU33212A Function/Arbitrary Waveform Generator Overview

The Keysight EDU33210 Series of function/arbitrary waveform generators provide all the standard signals and features you expect, including modulation, sweep, and burst. It also offers additional capabilities and flexibility to help you complete complex tasks quickly. The intuitive, information-packed front-panel interface allows you to easily pick up where you left off.

The series EDU33212A model features a 7-inch WVGA color display that lets you view both waveform settings and other parameters simultaneously. This 20 MHz dual-channel function/arbitrary waveform generator can display waveform information for both channels at the same time. Color-coded keypads and connectors help prevent setup and connection errors, making it ideal for a Smart Bench Essentials (SBE) bench setup.

With USB and LAN connectivity, the EDU33212A allows for straightforward remote access and control. It supports SCPI language, IVI driver, web browser, and Keysight's Pathwave BenchVue software for versatile operation.

A built-in USB memory port enables you to save setup parameters on a USB flash drive, enhancing efficiency by allowing quick restoration of the same setup across all generators in your lab and fast loading of arbitrary waveform signals.

The EDU33212A includes 17 built-in arbitrary waveforms, such as sine, square, ramp, triangle, pulse, PRBS, DC, and Gaussian noise. It also features specialty waveforms like cardiac, exponential fall, exponential rise, Gaussian pulse, haversine, Lorentz, D-Lorentz, negative ramp, and sinc. Additionally, it supports six built-in modulations: AM, FM, phase modulation (PM), frequency-shift keying (FSK), binary phase shift keying (BPSK), and pulse width modulation (PWM).

Features and Specifications

• Dual Channel - Independent, coupled parameter(s), combined (Channels 1 and 2); equal (Channel 1 = Channel 2) or differential (Ch 1 = -Ch 2)

• 7-inch color display allows for a simultaneous parameter set up, signal viewing, and editing

• Get six built-in modulation types and 17 popular waveforms to simulate typical applications for testing

• Acquire 16-bit arbitrary waveform capability with memory up to 8 M samples per channel

• The USB and LAN IO interfaces equip the unit with remote connectivity

• SCPI (Standard Commands for Programmable Instruments) compatibility

• Utilizes Keysight's PathWave BenchVue software to enable PC control

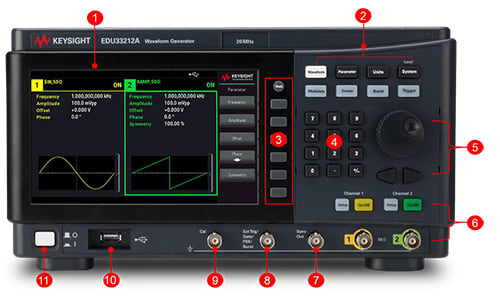

Front Panel

1. 7-inch WVGA display

2. Function keys

3. Soft keys

4. Numeric keypad

5. Knob and cursor arrows

6. Output connectors, set up, and on / off buttons

7. Sync / trigger output connector

8. External triggering / gate / FSK / burst connector

9. CAL connector

10. USB port

11. Power switch

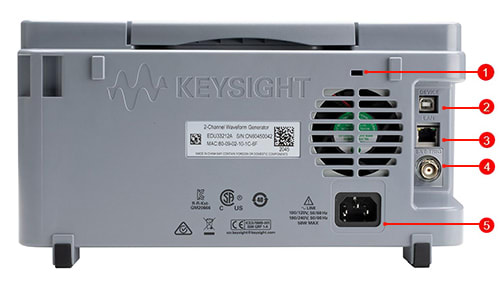

Rear Panel

1. Kensington lock

2. USB interface connector

3. LAN interface connector

4. EXT Trigger

5. AC line power

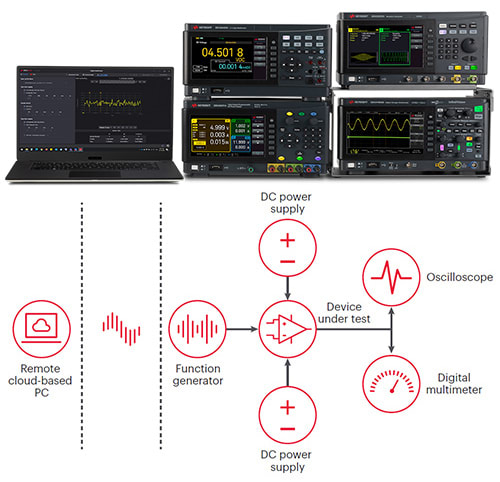

Keysight's Smart Bench Essentials (SBE) Complete Learning Lab Solution

The Keysight Smart Bench Essentials Series teaching lab equipment is affordable and modern. By offering a complete portfolio of instruments with a common user interface and software, it allows students or electronics engineers to do more directly or remotely from anywhere, at any time. These Smart Bench Essentials (sold separately) can harnesses the power of four unique test instruments through one powerful graphical interface with integrated data management and analysis.

Reliable Connectivity And Usability For Your Daily Tasks:

EDU34450A - 5.5-digit digital multimeter

EDU36311A - 30 W triple-output power supply

EDU33211A / EDU33212A - 1 / 2 channel waveform and function generators

EDUX1052A / EDUX1052G (Wave Gen) - 50 MHz oscilloscopes

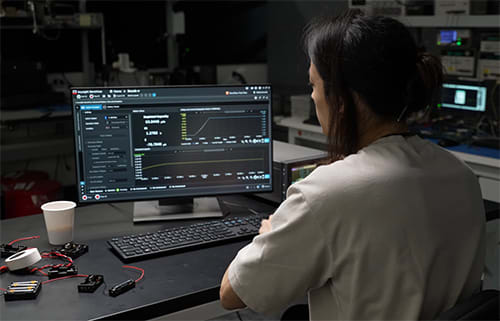

Together with PathWave test software, it can:

• Manage an entire lab: Configure, control, and monitor multiple instruments from a single screen

• Require little or no training to set up and control your test hardware

• Intuitive lab tools track your instruments and keep them up to date

• Automate workflows from test set up to report generation

• Access lab instruments remotely with your peers, to test, analyze, and share

What's in the Box

• EDU33212A Dual Channel Function/Arbitrary Waveform Generator

• PathWave BenchVue basic software included

• Quick Start Guide

• AC power cord (for country of destination)

• Certificate of Calibration

• 3-year warranty standard
