• Laser Scan Micrometer - high-rate scanning, highly accurate measurements for various applications
• Ultra-Wide Range, non-contact measurements laser scan micrometer
• Display Unit continuously monitors set-up values, gives readouts for 2 measured values simultaneously
• Measurement range from 1 to 120mm (0.04-4.72in)
• Provides high accuracy, linearity of +/- 6μm over the entire measuring range (1mm to 120mm)
• Excellent repeatability of +/-0.8μm; Scanning rate of 3200 scans/s
• IP64 protection level - to resist rough measurement environments; high-temp resistant (45 C)
• Suitable for high-speed lines or in applications subject to vibration

The Mitutoyo LSM-512S series Laser Scan Micrometer combines high-rate scanning with highly accurate measurements for a wide range of applications including high-speed lines. The high scanning rate (3200 scans/sec) and non-contact measuring process enable the Mitutoyo LSM-512S Laser Scan Micrometer to provide highly accurate measurements on small, fragile workpieces at high temperatures, even when the target is vibrating or in motion. This capability makes the LSM-512S series ideal for measuring in high-speed production lines.

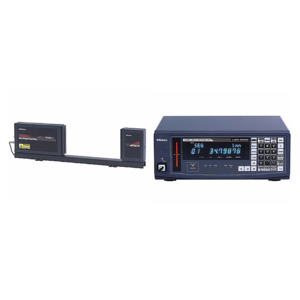

Mitutoyo LSM-512S Laser Scan Micrometer

The high scanning rate (3200 scans/sec) and non-contact measuring process enable the Mitutoyo LSM-512S Laser Scan Micrometer to provide highly accurate measurements on small, fragile workpieces at high temperatures, even when the target is vibrating or in motion. This capability makes the LSM-512S series ideal for measuring in high-speed production lines.

• Narrow range accuracy of +/-4.0+0.5D)µm for high-precision measurement
• Provides ultra-high accuracy of +/-6µm over the entire measuring range (1 - 120mm)
• An IP64 rating resists rough measurement environments allowing it to operate at high temperatures

LSM-6200 Multi-function Display Unit

The Mitutoyo LSM-6200 series display provides excellent versatility for real-time laser scan micrometer measurement readouts. Its dual-display design allows setup values to be monitored continuously. A simultaneous measurement function allows two measurement value items to be displayed on the sub-display.

• Automatic workpiece detection starts measuring when a workpiece advances into the specified measuring area
• Capable of statistical analysis such as average, maximum value, minimum value, range (max. - min.), and more
• Segment measurement (7 points) or edge measurement (1 to 255 edges) can be selected
• The abnormal value elimination function removes false readings for more accurate measurements
• 100 tolerance values, preset values or settings can be stored for single-operation recall

Laser Scan Micrometers Series Features

0.005mm-diameter ultra-fine wires to 160mm diameter cylinders can be measured: Seamless measurement range models - A rich assortment of models for diverse measuring applications. The LSM-500S can measure ultra-fine wires as thin as 0.005mm in diameter to a resolution of 0.00001mm, and the LSM-516S can measure cylindrical workpieces with a diameter as large as 160mm. The LSM-9506 benchtop model combines a display section and measurement section in a single unit.

Ultra-high scanning rate of 3200 scans/sec - The incorporation of a 16-face polygonal mirror and a high-precision motor now makes scanning at 3200 scans per second possible. This formidable capability is ideal, for example, for taking measurements on high-speed production lines or vibrating workpieces.

Certified accuracy over the entire measurement range - The specified accuracy over the entire measurement range is certified by the "Traceability System to the International Standard" which Mitutoyo, as a leading manufacturer of precision measurement tools and instruments, has established within its business practices.

Improved resistance to IP64-level environments - The measuring unit has been extensively developed to resist rough measurement environments. As a result, for example, it can operate at an ambient temperature of 45C. (IP64-level resistance is not guaranteed for the display unit and the LSM-9506.)

DIN-size compact panel-mounted display unit (LSM-5200) - The LSM-5200 display unit is a compact DIN size, allowing it to be mounted in a panel, for use on production lines.

Standard I/O output, analog output and RS-232C output interfaces. Wireless capable - The LSM-5200/6200/6900 has a standard I/O and analog output interface to connect it to an operation controller or PLC used on a production line. Also, every model has a standard RS-232C interface for connection to personal computers or printers. Capable of using a U-wave wireless system using optional accessories (sold separately).
