HellermannTyton 156-01782 Cable Tie, MOC Clip, Assembled to T50SMVC, 0.33"L, Black, 1000/Ctn

Our Part #10217194

Mfr Part #156-01782

HellermannTyton 156-01782
HellermannTyton
HellermannTyton

HellermannTyton 156-01782 Cable Tie, MOC Clip, Assembled to T50SMVC, 0.33"L, Black, 1000/Ctn

Our Part #10217194

Condition:New

Mfr Part #156-01782

$0.36EACH
Multiples of: 2,000
  • Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement. Controlled flex and angled entry promote easy installation. Independent rotation allows for adjustable routing orientation. Cable tie accommodates wide range of secondary bundle sizes.

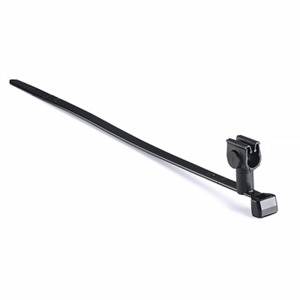

The MOC 180 to Swivel Tie is a rotatable routing clip coupled to a cable tie that keeps two routings secured and separated. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness. The clip's orientation allows the second routing to be assembled in the direction of the first routing. The swivel coupler allows the two routings to rotate independently of each other.

Brand: HellermannTyton
Type: Outdoor Cable Ties
Package Quantity: 1000 Per Pkg.
Alternate Product Number: T50SMVCMOC5M180
Bundle Diameter: 0.16" Min | 0.22" Max
Color: Black
Depth: 0.39"
Flammability Rating: UL 94 HB
Halogen Content: Yes
Height: 1.01"
Length: 0.33"
Locking Type: Self-Locking (Standard)
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40 to 221°F
RoHS Compliance: Yes
Series: MOC Series
Style: Assembled
Tensile Strength: 50 lb.
Tie Length: <4 Inches
Typical Use: For Indoor and Outdoor Use
UV Stablized: Yes
