3M

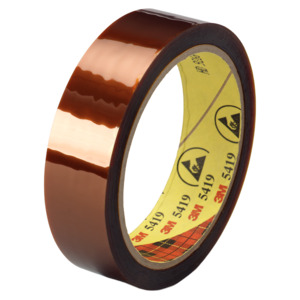

3M 7000050110 Low-Static Polyimide Film Tape 5419 Gold, 1/2" x 36 yds x 2.7 mil, Paper Core, Boxed
Our Part #10303921
Mfr Part #7000050110
3M
3M 7000050110 Low-Static Polyimide Film Tape 5419 Gold, 1/2" x 36 yds x 2.7 mil, Paper Core, Boxed
Our Part #10303921
Condition:NEW
Mfr Part #7000050110
Has Expiration Date
$Roll
Has Expiration Date
- Description
- Specifications
- Documents
3M™ Low Static Polyimide Film Tape 5419 with DuPont™ Kapton® polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications. Low Static.
Employs a proprietary technology that results in extremely low electrostatic discharge at unwind and removal from the PWB. Conventional polyimide tapes can typically generate over 10,000 volts during use which can damage board mounted electronic components. 3M tape 5419 overcomes this problem without any of the typical drawbacks of conventional "anti-static" or "static-free" tapes (e.g., variable adhesion and opaqueness). Standard Lead Time: 7 Calendar Days
Features:- DuPont™ Kapton® polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures
- No rework required, enabling high productivity
- Protects surfaces helping reduce replacement parts
- Available on cardboard or polyethyelene core
- Color: Gold
- Part Number: 5419
- Width: 0.5 in
Brand: 3M
Length: 8.15"
Width: 0.5"
Color: Gold
Thickness: 2.7 mil
Adhesion Strength: 20 oz./in.
Adhesive Material: Silicone
Alternate Product Number: 00021200237744-31196
Applications: Mask for Printed Circuit Boards During Wave Solder or Solder Dip Process, Used as Release Surface in Fabrication of Parts Cured at Elevated Temperatures
Backing Material: Polyimide Film
Dimensions: 1/2 x 36 yd
Height: 1.55"
Material: Polyimide
Series: 5419 Series
Shelf Life: 1095 days
Tensile Strength: 33 lb./in.
