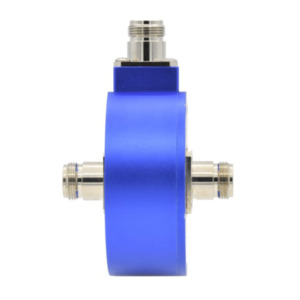

Coaxial RF Current Monitoring Probe

Features:

• Bandwidth: 2kHz - 70MHz
• Frequency range: 10Hz - 100MHz
• Transfer impedance: 0 dB Ohm when loaded with 50 ohm
• Connector type: N female
• Max primary current (RF): 12A
• Max core temperature: 125 C (257 F)

The TekBox TBCCP1-2K70 is a coaxial RF current monitoring probe designed to be used as a transducer for large loop antennas or for applications that need to measure RF currents in coaxial cables. The probe has a characterized frequency range of 10Hz to 100MHz and a 3dB bandwidth of 2kHz to 70MHz. With a trans-impedance of 0 dB Ohm, it is compliant with the specifications for large loop antennas (LLA) in CISPR 15 (EN 555015) and CISPR 16-1-4.
