• For Shore D hardness testing
• Ideal for use with hard rubber, hard resin, acrylic, glass, thermoplastic, etc.
• Handheld, portable, digital measuring device
• Measurement range: 0 ... 100 Shore D
• Accuracy: ± 2 Hardness - Grade
• Large, easy-to-read display
• Hold functionality

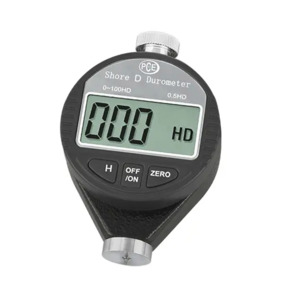

The PCE-DD-D is a Shore D durometer or hardness tester used to measure the Shore hardness of materials such as hard rubber, hard resin, acrylic, glass, thermoplastic and more. This Shore D durometer uses an impact rod with a 30º conical point and 50 Newtons (N) of force to make a surface indentation on material samples with a minimum thickness of 6 mm or 0.24 in. (Note: If a material sample does not meet the minimum thickness required, the sample should be reinforced on the back with more of the same material.)

What's in the Box

• 1x PCE-DD-D Shore D Durometer
• 1x Plastic carrying case
• 1x 1.5V Battery
• 1x Users manual
