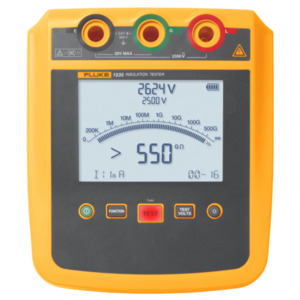

FLUKE-1535 2500V Insulation Tester

Features And Specifications

• Tailor tests with user-selectable voltages of 250 V, 500 V, 1000 V, and 2500 V
• Reach up to 500 Gigohm in insulation resistance measurement
• Execute up to 1,300 measurements at 2500 V or 6,500 measurements at 250 V
• Benefit from a CAT IV 600 V rating and a built-in voltage alarm function

The 153X series of insulation testers helps you to quickly and efficiently determine the integrity of cables, windings on motors and transformers, as well as numerous electrical equipment and installations.

The Fluke 1535 Insulation Resistance Tester is engineered to simplify frontline troubleshooting in a portable, lightweight, fast, accurate and reliable insulation tester. Whether you're on the factory floor or working in the field at a solar installation, Fluke's 1535 with user-selectable test voltages from 250 V to 2500 V and resistance measurements up to 500 Gigohm allows you to cover more workload with a single tool. Equipped with an intuitive user interface, a short circuit current of up to 5 mA and a CAT IV 600 V rating, this portable high-voltage insulation tester can deliver rapid and stable resistance measurements no matter where you take it.

What's in the Box

• FLUKE-1535 2500V Insulation Tester
• Red, Green, Black Leads
• Case
• Alligator Clips
