FLUKE-1537 2500V Advanced Insulation Tester

Features And Specifications

• Tailor tests with user-selectable voltages of 250 V, 500 V, 1000 V, and 2500 V
• Reach up to 500 Gigohm in insulation resistance measurement
• Automatic calculation of polarization index (PI) and dielectric absorption ratio (DAR)
• Execute up to 1,300 measurements at 2500 V or 6,500 measurements at 250 V
• Benefit from a CAT IV 600 V rating and a built-in voltage alarm function
• Memory storage eliminates writing down results, reduces errors and saves data for historical tracking over time

The 153X series of insulation testers helps you to quickly and efficiently determine the integrity of cables, windings on motors and transformers, as well as numerous electrical equipment and installations.

The Fluke 1537 Insulation Resistance Tester is engineered to simplify frontline troubleshooting in a portable, lightweight, fast, accurate and reliable insulation tester. Whether you're on the factory floor or working in the field at a solar installation, Fluke's 1537 with user-selectable test voltages from 250 V to 2500 V and resistance measurements up to 500 Gigohm allows you to cover more workload with a single tool. Equipped with an intuitive user interface, a short circuit current of up to 5 mA and a CAT IV 600 V rating, this portable high-voltage insulation tester can deliver rapid and stable resistance measurements no matter where you take it.

It also allows you to store measurements for later review or PC transfer, using the provided software. Along with additional features such as:

• Extended Measurements: Enhanced testing capabilities with AC/DC voltage and resistance measurements
• Stable Resistance Measurements: Achieve faster, more stable insulation resistance measurements with a short circuit current up to 5mA
• Dielectric Discharge Rate Calculation: Automatically calculate the dielectric discharge rate (DD) to aid in identifying elusive insulation issues
• Ramp Test Mode: Linearly increase the applied test voltage 100 V/s to help identify potentially hard to identify fault conditions
• Visual and Audio Continuity Indicator: Verify continuity visually on the screen display or with the audible indicator so you can focus on your testing procedure without looking at the display
• Customizable Testing Parameters: Set user-defined labels, adjust test duration, and store measurement results for a tailored testing experience
• Effortless Data Management: Download and manage data effortlessly with the provided PC software
• Extended Warranty: Enjoy peace of mind with an extended 3-year warranty.

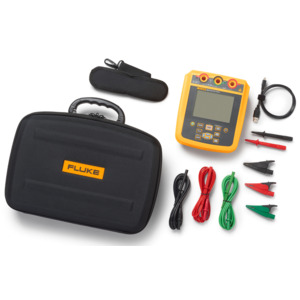

What's in the Box

• FLUKE-1537 2500V Insulation Tester
• Red, Green, Black Leads
• Case
• Alligator Clips
• USB cable (Fluke 1537 only)
• PC software (Fluke 1537 only - downloadable from Fluke's website)
