Uni-T UTD2102CEX+ Digital Oscilloscope

Features and Specifications

• Bandwidth: 100MHz
• Analog Channels: 2
• Real-Time Sample Rate: 1GSa/s
• Max. Memory Depth: 64kpts
• Waveform Capture Rate: 5,000wfms/s
• Display: 7-inch TFT, LCD, WVGA

UTD2102CEX+ Overview

The Uni-T UTD2102CEX+ Digital Storage Oscilloscope (DSO) is an advanced instrument that caters to the needs of electrical engineers and professors who require precision and versatility in waveform analysis. It is equipped with a wealth of features and capabilities that elevate your waveform analysis tasks.

The DSO provides a suite of mathematical functions that simplify complex waveform analysis, allowing you to perform addition, subtraction, multiplication, division, and waveform calculations with ease. You can visualize the results of CH1 and CH2 waveform mathematical operations with precision.

It also offers the ability to examine waveforms in both their entirety and fine detail. A 7-inch screen is divided into two sections, providing an original waveform view on the top and a zoomed-in waveform display below. You can manipulate the cursors on either side of the original waveform to focus on specific details with remarkable clarity.

The UTD2102CEX+ DSO's XY Mode enables you to quickly measure phase differences between two signals of the same frequency. CH1 voltage is represented on the horizontal axis, while CH2 voltage is displayed on the vertical axis, facilitating precise assessment of phase relationships in your signals.

With the press of the AUTO button, you can achieve optimal waveform display as the DSO automatically adjusts vertical scale, horizontal time base, and trigger mode based on your input signals. You can customize the auto setting parameters to align with your specific requirements.

The instrument's FFT mode allows for a seamless transition from time domain (YT) to frequency domain signals. This feature is invaluable for various applications, including measuring harmonic content and distortion, displaying noise characteristics in DC power supplies, and analyzing vibration signals.

It simplifies your analysis tasks by offering 34 automatic parameter measurements and 5 customizable parameter display groups. You can measure parameters such as Min/Max, Peak-to-Peak, Mean, Cycle Mean, RMS, Rise/Fall Time, Frequency, and more. These measurements can be based on CH1, CH2, or mathematical functions, providing unparalleled flexibility.

You can customize your signal capture precisely to your requirements with a range of trigger options. The UTD2102CEX+ offers Edge Trigger, Pulse Width Trigger, Video Trigger, Slope Trigger, and Alternating Trigger, each with a plethora of settings for capturing signals with utmost precision.

Overall, the Uni-T UTD2102CEX+ Digital Storage Oscilloscope (DSO) empowers electrical engineers and professors with the tools they need for accurate and insightful waveform analysis. Elevate your work with the Uni-T UTD2102CEX+ and unlock a new level of precision in electrical engineering. Your next breakthrough is right at your fingertips!

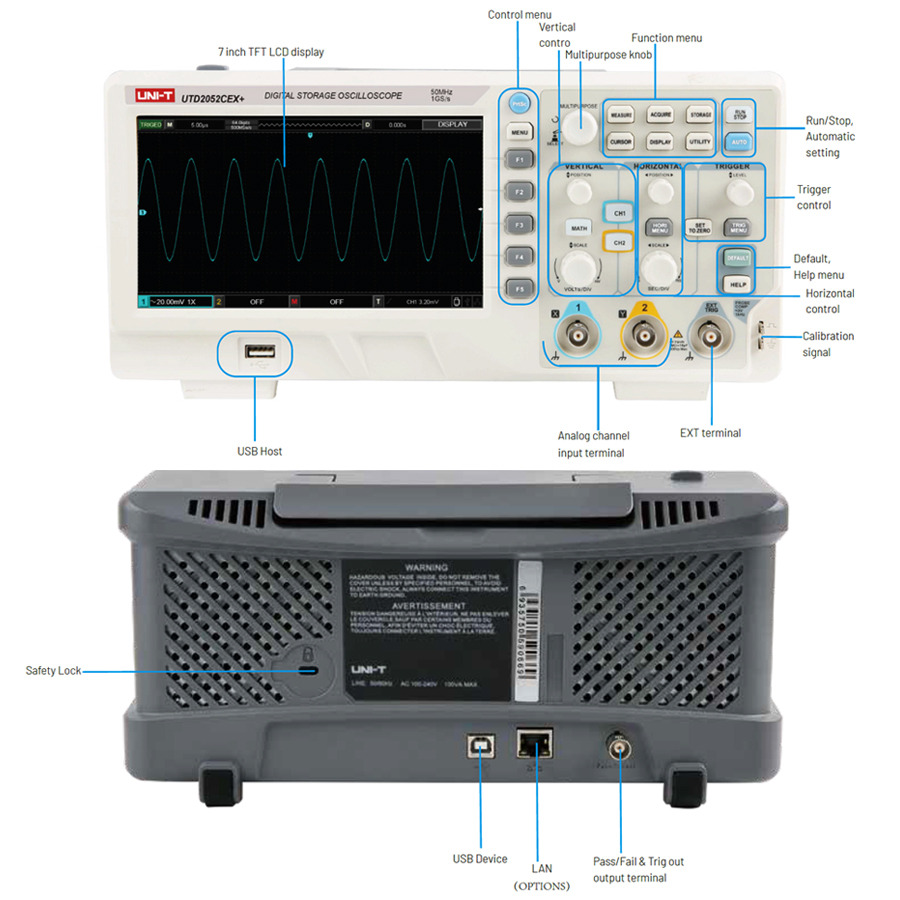

UTD2000 Series (UTD2000CEX/EX+) Panel Features

UTD2000 Series DSO - 9 Models (2 Subset Series)

The UTD2000CL+ Series is designed to equip educational institutions with digital storage oscilloscopes that closely mirror those utilized in the industrial sector. This is intended to bridge the equipment disparity between academia and industry, enabling graduates to seamlessly transition into the workforce. The UTD2000CL series is a dual channel digital storage oscilloscope with a maximum sampling rate of 500MS/s. The specifications of the UTD2000CL+ Series have been enhanced from the original UTD2000CL series with a sampling rate of 1 GS/s.

The UTD2000CEX+ Series digital storage oscilloscope is a beginner-friendly bench tool that fulfills essential measurement needs. Its user-friendly interface is designed for straightforward usage. The UTD2000CEX+ Series offers a bandwidth of 50MHz, 100MHz, or 200MHz, a real-time sampling rate of 1GSa/s, dual-channel functionality, and other performance features, along with a storage depth of 64kpts. Given its wide range of applications, this model is apt for sectors like communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, research and development, education, and more.

What's in the Box

• UTD2102CEX+ Digital Oscilloscope
• Power cord
• USB cable
