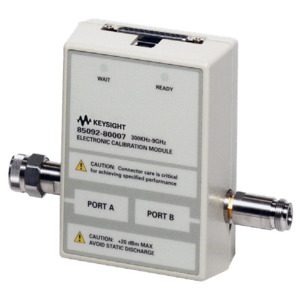

85092C/M0F RF Electronic Calibration Module

Configured: (M0F) 1 female and 1 male connector, both type-N 50 ohm

Features:

• 300 kHz to 9 GHz frequency range
• Fast full two-port calibration with a single connection
• Simple non-insertable device calibration
• USB interface for direct control with PNA and ENA series of network analyzers
• Reliable solid-state switching
• NIST traceable accurate calibrations
• Reduced connector wear

The 85092C RF electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. The RF ECal system is controlled by one of two methods depending on the network analyzer. The Keysight PNA and ENA series of network analyzers control the module directly via the USB interface.

ECal is an ideal solution for calibrating network analyzers. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical calibration kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.
