Keysight PW9254A/SW1000-LIC-01/SW1000-SUP-01 PathWave Advanced Power Application Bundle with Support

The Keysight PathWave Advanced Power Application Suite (PW9254A) integrates multiple functionalities into a single platform, including Power Analysis, Battery Emulation, and I-V Measurement. This suite combines the PW9251A PathWave IV Curve Measurement Software, PW9252A PathWave Advanced Power Control and Analysis, and PW9253A PathWave Advanced Battery Test and Emulation. Each software operates independently and simultaneously, allowing real-time data transfer within the platform, thereby enhancing usability and speeding up development cycles for future products.

Configurations Include:

• SW1000-LIC-01 Perpetual License, 12 months (can be used indefinitely and is renewable)

• SW1000-SUP-01 Support, 12 months (user-selected start and end dates)

KeysightCare Software Support Subscription Provides:

• Ensure your software is always current with the latest enhancements and measurement standards.

• Gain additional insight into your measurement problems with live access to Keysight's team of technical experts.

• Stay on schedule with fast turnaround times and priority escalations when you need support.

A Comprehensive Software Solution That Seamlessly Integrates Three Separate Applications Into One Unified Platform

Highlights:

• Real-Time data sharing between power control analysis and battery testing application.

• No more switching apps - it's all in one place.

• Expand the number of simultaneous channel outputs available in the application.

PW9251A - Pathwave IV Curve Measurement Software

The PathWave IV Curve software offers a user-friendly GUI for conducting synchronous current-voltage (IV) measurements across up to 40 channels without the need for programming. It includes various analysis tools for immediate review of test results through graphs and tables. The software also features export functions for graphs with markers and tables, facilitating efficient reporting. Additionally, test result files encompass all settings, enabling precise review and repetition of tests.

Supported Models: B2901A, B2902A, B2911A, B2912A, B2961A, B2962A, B2901B, B2901BL, B2902B, B2910B, B2911B, B2912B, B2961B, B2962B PZ2120A, PZ2121A, PZ2130A, PZ2131A, PZ2110A

PW9252A - PathWave Advanced Power Control and Analysis

The Keysight Technologies PW9252A PathWave Advanced Power Control and Analysis software provides quick and easy access to the advanced sourcing and measurement features of your N6705 DC power analyzer, RP7900 Series Regenerative Power System, and APS N7900 Series power supplies, all without requiring programming. It can manage over 36 DC power modules from the N6700 family when installed in a N6705 mainframe, 23 models from the RP7900 Series, and 12 models from the APS N7900 Series. Additionally, when controlling an N6781A SMU, it supports advanced battery drain analysis. The PW9252A also facilitates RP7900 Series operation in primary/secondary mode, allowing for easy configuration of parallel units to achieve higher output current.

Supported Models: N6705, N6731B,N6732B, N6733B, N6734B, N6735B, N6736B, N6741B, N6742B, N6743B, N6744B, N6745B, N6746B, N6751A, N6752A, N6753A, N6754A, N6755A, N6756A, N6761A, N6762A, N6763A, N6764A, N6765A, N6766A, N6773A, N6774A, N6775A, N6776A, N6777A, N6781A, N6782A, N6783A-BAT, N6783A-MFG, N6784A, N6785A, N6786A, N6791A, N6792A, N7950A, N7951A, N7952A, N7953A, N7954A, N7970A, N7971A, N7972A, N7973A, N7974A, N7975A, N7976A, N7977A, N69143A, N69145A, N69146A, N69172A, N69173A, RP7951A, RP7951AT, RP7952A, RP7952AT, RP7953A, RP7961A, RP7962A, RP7963A, RP7931A, RP7932A, RP7933A, RP7935A, RP7936A, RP7941A, RP7942A, RP7943A, RP7945A, RP7946A, RP7972A, RP7973A, RP7982A, RP7983A,RP7984A, E36154A, E36155A

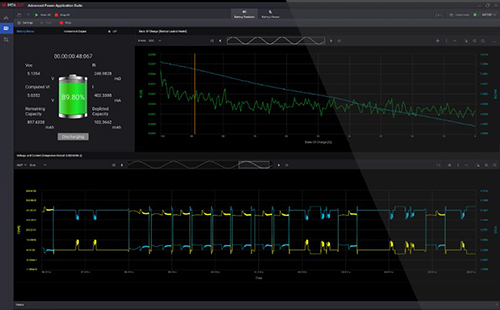

PW9253A - PathWave Advanced Battery Test and Emulation

The PW9253A PathWave Advanced Battery Test and Emulation software offers a comprehensive test environment for conducting battery tests, creating battery models, and performing battery emulation with Keysight’s two-quadrant power supplies. Its emulation feature allows for rapid output of desired battery conditions, enabling various test scenarios without waiting for actual battery discharge or charge cycles. By integrating with Keysight’s advanced two-quadrant product families, the PW9253A supports a wide range of applications from low to high power levels across industries such as consumer electronics, medical devices, e-mobility, residential energy storage, and automotive. Additionally, it supports RP7900 Series operation in primary/secondary mode, facilitating easy configuration of parallel units for increased output current and power.

Supported Models: N6705A, N6705B, N6705C, N6700C, N6701C, N6702C N6781A, N6782A, N6784A, N6785A, N6786A N7950A, N7951A, N7952A, N7953A, N7954A, N7970A, N7971A, N7972A, N7973A, N7974A, N7976A, N7977A, N7953ALG, RP7951A, RP7952A, RP7953A, RP7961A, RP7962A, RP7963A, RP7951AT, RP7952AT, RP7953AT, RP7961AT, RP7962AT, RP7963AT, RP7931A, RP7932A, RP7933A, RP7935A, RP7936A, RP7941A, RP7942A, RP7943A, RP7945A, RP7946A, RP7972A, RP7973A, RP7982A, RP7983A, RP7984A 34970A, 34972A, DAQ970A, DAQ973A E36731A
