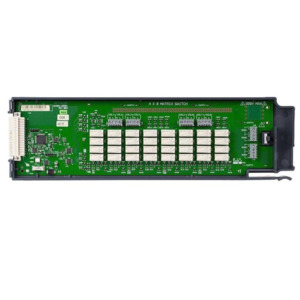

DAQM904A 4x8 Two-Wire Matrix Switch Module

The Keysight DAQM904A offers a highly adaptable connection path between your test equipment and device under test (DUT), enabling various instruments to connect to multiple points on the DUT at the same time. You can link rows or columns across multiple modules to create 8x8, 4x16, or even larger matrices, with up to 96 cross-points in a single frame.

Key Features:

• 32 two-wire cross-points

• 300 V, 1 A switching

DAQ970/73A Data Acquisition System Mainframe Highlights

The 3-slot mainframe for housing DAQ plug-in modules (sold separately) has the benefit of proven Keysight measurement performance, universal inputs with built-in signal conditioning, and modular flexibility, all in a low-cost, compact data acquisition package. Mix and match by choosing from 9 switch, RF and control plug-in modules to get just the functionality you need right now - then change or add more channels later as your application grows.

As accurate as the best bench DMM available, the DAQ970A/DAQ973A features 6 1/2 digits (22 bits) of resolution, 0.003% basic dcV accuracy, and ultra-low reading noise. Combine that with scan rates of up to 450 channels/sec, and you’ve got the speed and accuracy you need to get the job done right.
