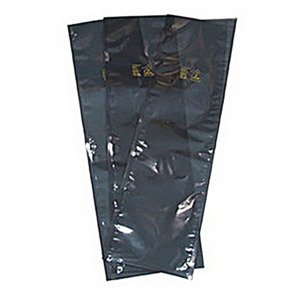

SCS 100624 Static Shield Bag, Metal-In 1000 Series, 6" x 24", 100 EA
Our Part #295ST0624
Mfr Part #100624
SCS
SCS 100624 Static Shield Bag, Metal-In 1000 Series, 6" x 24", 100 EA
Our Part #295ST0624
Condition:New
Mfr Part #100624
$Pack
- Description
- Specifications
- Documents
- Metal-In Film Laminate 0.0028” thick (2.8 mil). Protects ESD sensitive contents from electrostatic fields and electrostatic discharges (ESD)
- <10 nJ Discharge Shielding Energy Limit Test per ANSI/ESD STM11.31. Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD Protected Area (EPA)
- Dissipative Inner and Outer Surfaces Rs 1 x 10 ⁴ to <1 x 10 ¹ ¹ ohms per ANSI/ESD STM11.11 and Static Control Bag ANSI/ESD S11.4 Level 3. Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator
- Printed with ESD Protective Symbol and Lot Code Information. Meets the requirements of ANSI/ESD S541 for quality control purposes
- Lead-free RoHS 2, REACH and Conflict Minerals Compliant
- Made in the United States of America
Transparent, metalized static shield bag for sensitive electronic devices. Faraday cage effect and enhanced durability from sandwiched metal layer (between polyester and polyethylene) construction.
Brand: SCS
Opening Type: Open Top
Thickness: 2.8 mil
Length: 24"
Width: 6"
Color: Silver
Decay: <2 sec
ESD Safe: Yes
Heat Sealable: Yes
Material: Polyester/Polyethylene/Metal
Package Quantity: 100 Per Pkg.
Product Type: Static Shielding Bags
Puncture Strength: 12 lbs
Resistance: Inner and Outer Surfaces Rs 1 x 10⁴ to <1 x 10¹¹ ohms
RoHS Compliance: Yes
Series: 1000 Series
Size W x L: 6" x 24"
Storage: Store at 76°F (24°C) and protect from ultraviolet sunlight, moisture, or heat because the aluminum shielding layer could oxidize.
Surface Resistivity: 1 x 10⁴ to < 1 x 10¹¹ ohms
Temperature Range: 300°F - 375°F, 149°C - 190°C
Tensile Strength: 4600 PSI
Type: Metal-In Static Shielding Bag
Warranty: 1 Year
