Features and Specifications

2-channels
50 MHz
Sample rate: 1 GSa/s
Update rate: 100,000 wfms/sec with Keysight MegaZoom IV technology
Maximum memory depth: 200k points
Display: 7-inch TFT LCD WVGA
WaveGen (built-in 20 MHz function generator with modulation capability)
Frequency response analysis (Bode gain & phase plots)
Integrated digital voltmeter and frequency counter
Serial protocol analysis: I²C, RS-232/422/485/UART
Waveform Math: Add, subtract, multiply, divide, FFT
(magnitude and phase), low pass filter
Up and running quickly with built-in help and training signals
USB 2.0 (host and device), LAN
Utilizes Keysight's PathWave BenchVue software to enable PC control
(basic version is a free download)
Built-in help in multiple languages
Three-year warranty

EDUX1052G Oscilloscope Overview

Keysight's EDUX Models provide a quality education for students by using professional-level instruments that prepare them to work in the industry. The 1000 X-Series of EDUX instruments leverages the same technology as Keysight's higher-end oscilloscopes, allowing students to learn on the same hardware and software used in leading R&D labs. Don’t settle for less – set your students up for success with the EDUX models.

Built-in Training Signals

The EDUX1052G comes with built-in training signals that enable students to quickly learn how to capture and analyze signals. This feature is essential for hands-on learning and helps students understand the practical applications of oscilloscopes.

Digital Voltmeter

The EDUX1052G oscilloscope includes an integrated 3-digit voltmeter (DVM). The voltmeter operates through probes connected to the oscilloscope channels but is decoupled from the oscilloscope triggering system. This allows both the DVM and triggered oscilloscope measurements to be made with the same connection. You can quickly measure AC RMS, DC, and DC RMS without configuring the oscilloscope capture. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips.

WaveGen (20 MHz Function Generator with Modulation Capability)
(Available in EDUX1052G, DSOX1202G, and DSOX1204G models)

The 1000 X-Series EDUX1052G includes a built-in 20 MHz function generator with modulation features, making it perfect for educational or design labs with limited space and budget. This integrated function generator can produce sine, square, ramp, pulse, DC, and noise waveforms for your device testing needs. You can also add modulation to the signal with customizable AM, FM, and FSK settings. There's no need to purchase a separate function generator when it's already integrated into your oscilloscope.

Frequency Response Analyzer
(Available in EDUX1052G, DSOX1202G, and DSOX1204G models)

Frequency response analysis, which includes gain and phase Bode plots, is essential for characterizing amplifiers, passive networks, and power supply feedback networks. Bode plots are also key concepts for electrical engineering students. The 1000 X-Series' frequency response analyzer (standard in "G" models) is an excellent tool for helping students understand the gain and phase performance of passive RLC circuits and amplifiers. This capability is achieved through gain and phase measurements versus frequency (Bode plot). While VNAs and low-cost frequency response analyzers are typically used for these measurements, the 1000 X-Series offers an easy-to-use and affordable solution with its built-in WaveGen and Bode plot capabilities.

Frequency Counter

The EDUX1052G also features an integrated 5-digit frequency counter. This counter operates through probes connected to the oscilloscope channels, allowing both the counter and triggered oscilloscope measurements to be made with the same connection. You can quickly measure frequency without configuring the oscilloscope capture. The high-resolution frequency measurement results are always displayed, ensuring quick and accurate characterization.

Hardware-Based Serial Protocol Decode and Triggering

The EDUX1052G is a powerful protocol analyzer that enables hardware-based specialized serial communication analysis (standard). Unlike other vendors' oscilloscopes that use software post-processing techniques, the 1000 X-Series EDUX1052G offers faster decoding based on hardware technology. This enhances scope usability and increases the probability of capturing infrequent serial communication errors. The EDUX models support I2C and UART/RS232 (standard).

Educator's Resource Kit

The Educator's Oscilloscope Training Kit (standard) provides an array of built-in training signals so that electrical engineering and physics students can learn what an oscilloscope does and how to perform basic measurements. The kit includes a comprehensive oscilloscope lab guide and a tutorial written specifically for undergraduate students. Additionally, Keysight provides a PowerPoint slide set that professors and lab assistants can use as a pre-lab lecture on oscilloscope fundamentals. This lecture, which takes about 30 minutes, should be presented before students begin their first circuits lab. The slide set also includes a complete set of speaker notes.

IoT Systems Design Applied Courseware

The 1000 X-Series EDUX1052G oscilloscope can be used with the U3800A Internet of Things (IoT) Systems Design Applied Courseware, making it a versatile tool for modern educational needs.

1000 X-Series Feature	EDUX1052A	EDUX1052G
Bandwidth (with upgrade)	50 MHz	50 MHz
Channels	2 channel + external digital channel	2 channel + external digital channel
Max Sample rate	1 GSa/s	1 GSa/s
Memory	200 kpt	200 kpt
Update rate	100,000 wfms/s	100,000 wfms/s
Built-in WaveGen	No	Included
FRA (Bode Plots)	No	Included
Mask Testing	No	No
Segmented Memory	No	No
Connectivity	LAN, USB host, USB device	LAN, USB host, USB device

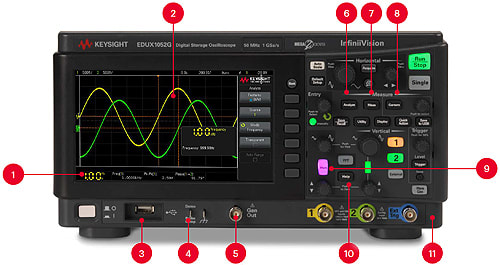

Front Panel

DVM/Counter
Fast Waveform Update Rate
USB Port
Training Signals
Function Generator
Analyze Features
Measurements (32 built-in)
Cursors
Waveform Math Tools
Built-in Localized Help
Industry Leading Interface

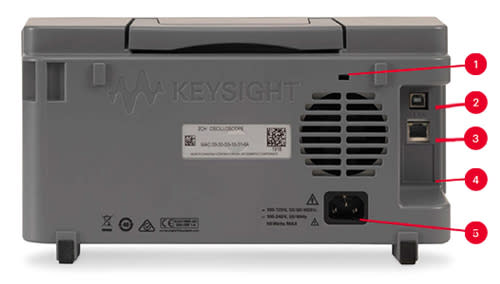

Rear Panel

Kensington lock hole
USB Device port
LAN port
EXT TRIG input (on 1000 X-Series 4-channel oscilloscopes)
Power cord connector

Keysight's Smart Bench Essentials (SBE) Complete Learning Lab Solution

The Keysight Smart Bench Essentials Series teaching lab equipment is affordable and modern. By offering a complete portfolio of instruments with a common user interface and software, it allows students or electronics engineers to do more directly or remotely from anywhere, at any time. These Smart Bench Essentials (sold separately) can harnesses the power of four unique test instruments through one powerful graphical interface with integrated data management and analysis.

Reliable Connectivity And Usability For Your Daily Tasks:

EDU34450A - 5.5-digit digital multimeters

EDU36311A - 30 W triple-output power supply

EDU33211A / EDU33212A - 1 / 2 channel waveform and function generators

EDUX1052A / EDUX1052G (Wave Gen) - 50 MHz oscilloscopes

Together with PathWave test software, it can:

Manage an entire lab: Configure, control, and monitor multiple instruments from a single screen
Require little or no training to set up and control your test hardware
Intuitive lab tools track your instruments and keep them up to date
Automate workflows from test set up to report generation
Access lab instruments remotely with your peers, to test, analyze, and share

What's in the Box

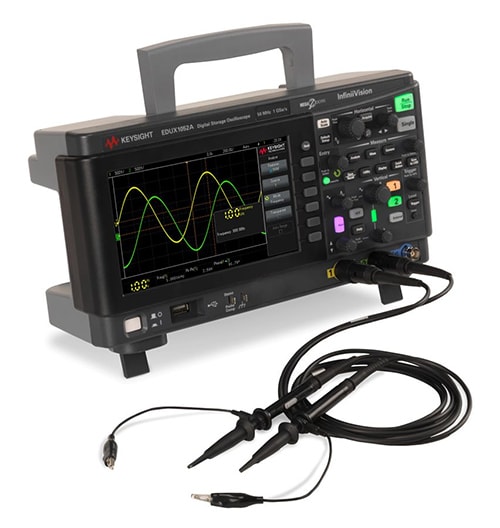

EDUX1052G oscilloscope
Two N2142A 75 MHz 10:1/1:1 switchable passive probes
Power cord (country of origin determines specific type)
Certificate of Calibration
