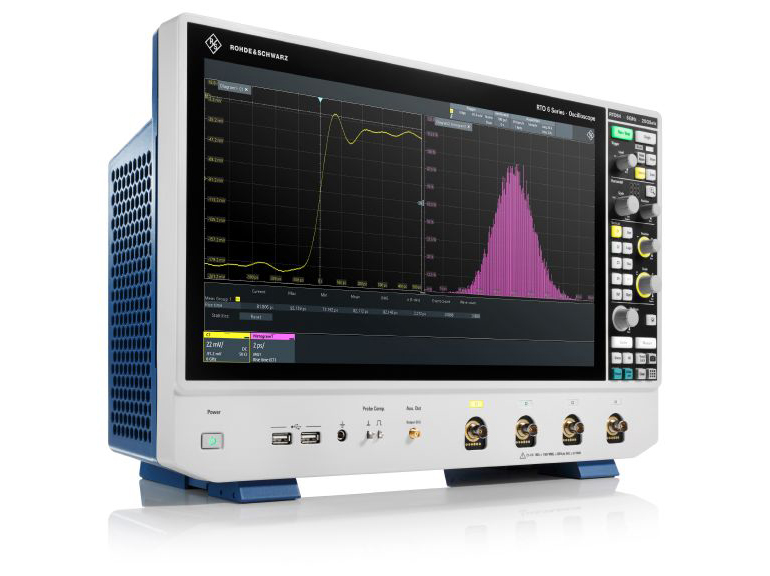

Instant insight meets in-depth information with the RTO6 Series RTO64/RTO6-B94 Oscilloscope

The RTO6 Series Oscilloscope leverages engineering expertise and improves measurement confidence with deep insights when needed. Engineered to deliver reliable results, it is a sophisticated laboratory companion to solve measurement problems fast and keep things on schedule.

Features and Benifits

• 4 GHz Bandwidth
• 4 Channels
• 10 GS/s, 20 GS/s (2 Channels) Sample Rate
• 200 Mpts, 800 Mpts(1 Channel)
• 1 mV/div Input sensitivity
• Exclusive frequency zone trigger
• Outstanding A/D converter with up to 16 bit Resolution
• Fastest throughput ASIC with 1,000,000 waveforms/s
• Optimized GUI with gesture operations

RTO6 Series Oscilloscopes provide superior signals for insight into your application. The large 15.6" touchscreen and streamlined GUI, combined with high waveform update rate, excellent signal fidelity, digital trigger and deep responsive memory serve as a fully integrated test solution for frequency, protocol and logic analysis. The rich measurement toolset for the RTO6 oscilloscope is streamlined and the user interface can help quickly solve circuit issues, from simple to complex.

High input sensitivity and very low inherent noise mean that the RTO6 oscilloscopes are optimized to perform precise measurements. High-definition (HD) mode enables easy visualization and triggering on signals with up to 16 bit resolution. The RTO6 Series oscilloscope detects and displays sporadic signal faults with an industry-leading update rate of up to 1 million waveforms/s.

The RTO6 is the oscilloscope you can trust. Engineered to deliver reliable results, it is a sophisticated laboratory companion to solve measurement problems fast and keep things on schedule. RTO6 Series oscilloscopes leverage engineering expertise and improve measurement confidence with deep insights whenever needed.
