Fluke 190 Series III ScopeMeter

The Fluke 190 Series III ScopeMeter® Test Tools are designed for mobility and versatility to assist in a wide array of troubleshooting tasks. With a durability rating of CAT III 1000 V/CAT IV 600V, these tools merge the convenience of portability with the advanced capabilities of bench oscilloscopes, making them ideal for the setup, activation, and maintenance of industrial machinery, automation systems, process controls, and power conversion electronics. They are effective for measurements ranging from DC to 500 MHz.

Available in either two or four channel configurations, these oscilloscopes offer a variety of bandwidth options to suit different needs. They feature rapid sampling rates up to 5.0 GS/s, 200 ps resolution, and a substantial memory capacity of 10,000 samples per channel, ensuring precise waveform, noise, and disturbance analysis. Whether you're conducting timing or amplitude measurements on three-phase systems, controlling three axes, or comparing multiple test points within a circuit, these tools provide the accuracy you need. Innovative functions such as the TrendPlot™ Paperless Recorder, ScopeRecord™ Mode, Connect-and-View™ Triggering, and a distinctive 100-screen Replay feature, streamline the troubleshooting process, aiding in the quick identification of complex issues such as waveform anomalies, induced noise, sporadic events, and signal instability. These functionalities not only simplify usage but also aid in swiftly pinpointing problems to reduce repair expenses and operational interruptions.

Key Features of the Fluke 190 Series III ScopeMeter

• Up to four independent floating isolated inputs, up to 1000 V

• Up to 5 GS/s real time sampling (depending on model and channels used)

• Deep memory: 10,000 points per trace waveform capture (scope mode)

• CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments

• Up to seven hours of battery operation using BP291

• Large, bright color display is easy to view in nearly any environment

• Easy to store and view historical data and transfer to a PC via USB or Wifi

• Convenient battery access door for quick battery swaps in the field

• IP51 rating, dust and drip-proof

• Connect-and-View triggering for intelligent, automatic triggering on fast, slow and even complex signals

• Frequency spectrum using FFT-analysis

• Automatic capture and REPLAY of 100 screens

• ScopeRecord mode gives 30,000 points per input channel for low frequency signal analysis

• TrendPlot Paperless Recorder mode with deep memory for long- term automatic measurements

• 5,000 count DMM included in the 2-channel models

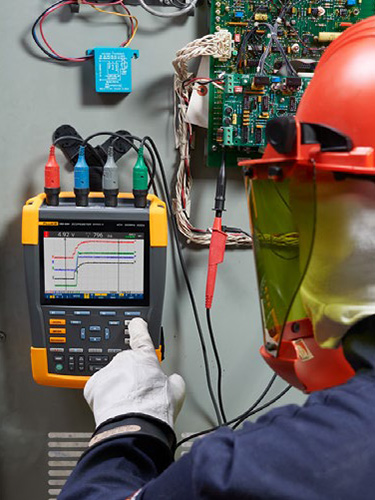

Measure from mV to kV safely

Independently isolated inputs allow you to make measurements in mixed circuits having different ground references reducing the risk of accidental short circuits. Conventional bench oscilloscopes without special differential probes and isolation transformers can only reference measurements to line power earth ground. ScopeMeter 190 Series III test tools are engineered to cover a wide application range from mV to kV, so you’re ready for anything from microelectronics to heavy-duty higher voltage electrical applications. 190 Series III 60MHz and 100MHz configurations include VPS421 100:1 probes for higher voltage applications, while the 200MHz and 500MHz configurations include VPS410-II 10:1 probes suitable for both microelectronics and higher voltage applications.

IP-51 rated for harsh environments

Rugged and shock-proof, ScopeMeter Test Tools are built for dirty, hazardous environments. With its sealed case, it can endure dust, drips, humidity and airborne pollutants. Every time you reach for ScopeMeter Test Tool you can be confident it will work reliably wherever your work takes you.

Get more out of your ScopeMeter Test Tool with FlukeView 2 ScopeMeter Software for Windows.

• Documentation—transfer waveforms, screens and data to your PC for printing or importing data into a report

• Add text to ScopeMeter Test Tool settings—give operators guidance when recalling settings

• Archive—create a library of waveforms for easy reference, or waveform comparison

• Analysis—use cursors or export data to another analysis program

High performance portable oscilloscopes engineered for harsh environments

The Fluke 190 Series III ScopeMeter Test Tools offer advanced safety features and versatility for a wide range of electrical measurements, from millivolts to kilovolts. With independently isolated inputs, these tools enable safe measurements in circuits with different ground references, minimizing the risk of accidental short circuits—a significant advantage over conventional bench oscilloscopes that typically reference measurements to line power earth ground. The ScopeMeter is designed to cater to various applications, from microelectronics to heavy electrical tasks, and comes equipped with probes tailored to specific voltage ranges, ensuring readiness for both low and high voltage applications. Additionally, its IP-51 rating signifies a robust build capable of withstanding harsh environmental conditions like dust, moisture, and pollutants, making it reliable for use in challenging settings.

On the technological front, the ScopeMeter distinguishes itself with features such as USB and optional Wi-Fi connectivity for easy data transfer, and the Connect-and-View triggering for automatic, stable signal display without manual adjustments. This ease of use extends to its built-in digital multimeter function, offering precise measurements with a variety of testing options. The tool also boasts high-resolution waveform recording through its ScopeRecord mode and the ability to capture intermittent faults over extended periods with the TrendPlot paperless recorder. These capabilities, combined with the FlukeView 2 ScopeMeter Software, enhance its utility for documenting, archiving, and analyzing electrical measurements, providing a comprehensive solution for diagnosing and troubleshooting electrical issues efficiently.

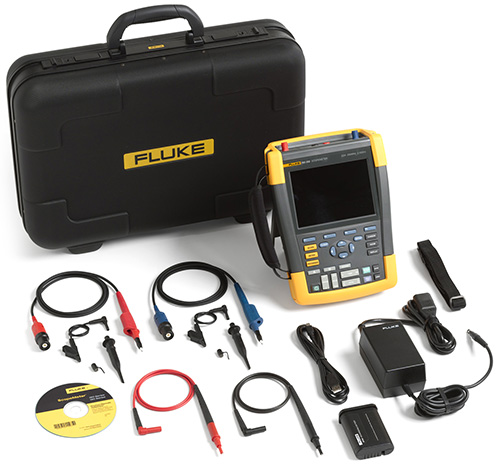

In the box:

• ScopeMeter 190-102-III

• BC190/830 power adapter

• Power cord set

• BP290 Li-ion battery pack

• TL175 test lead set

• VPS421 probe (2x)

• Hand strap

• Hanging strap

• USB-cable

• Printed instructions
