Tektronix MSO58LP/BW-1000RL Mixed Signal Oscilloscope, 8 Channel, 1GHz, 6.25GS/s, 5 Series MSO

5 Series MSO Low Profile Oscilloscope, 8 Channel, 1 GHz

Specs:

• Bandwidth (all analog channels): 1 GHz

• 8 FlexChannel inputs

• Each FlexChannel provides:

  • One analog signal that can be displayed as a waveform view, a spectral view, or both simultaneously

  • Eight digital logic inputs with TLP058 logic probe (sold separately)

• Video display output: High Definition (1,920 x 1,080) resolution video output Connectivity

• USB Host (6 ports), USB 3.0 Device (1 port), LAN (10/100/1000 Base-T Ethernet), Display Port, DVI-D, VGA

Features:

• Sample rate (all analog / digital channels)

  • Real-time: 6.25 GS/s

  • Interpolated: 500 GS/s

• Record length (all analog / digital channels)

  • 125 Mpoints (std.)

  • 250, 500 Mpoints (optional)

• Vertical resolution

  • 12-bit ADC

  • Up to 16-bits in High Res mode

• Standard trigger types:

  • Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional)

  • Auxiliary Trigger ≤5 VRMS, 50 Ohm, 200 MHz (Edge Trigger only)

• Waveform capture rate:

  • >500,000 waveforms/s

• Standard analysis:

  • Measurements: 36

  • Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains RF vs. time traces (magnitude, frequency, phase)

  • FastFrameTM: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second

  • Plots: Time Trend, Histogram, Spectrum and Phase Noise

  • Math: Basic waveform arithmetic, FFT, and advanced equation editor

  • Search: Search on any trigger criteria

  • Jitter: TIE and Phase Noise

Low Profile 5 Series MSO

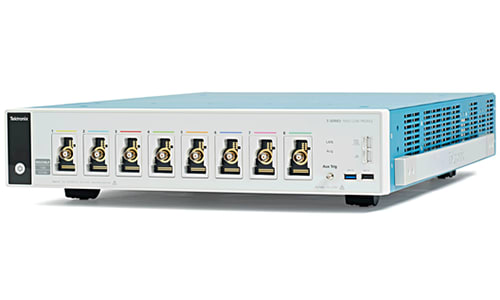

The 5 Series MSO Low Profile MSO58LP with eight 1 GHz input channels plus an auxiliary trigger input, 2U high package and 12-bit ADCs, sets a new standard for performance in applications where extreme channel density is required along with a space-saving design.

Able to fit into 19-inch wide racks, the instrument has side air vents so that instruments can be mounted in a rack directly on top of one another, saving even more space. It comes standard with rack mount brackets installed, ready for mounting into a rack right out of the box.

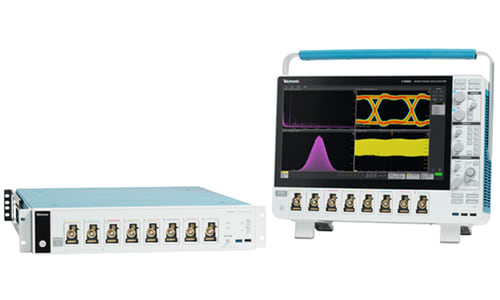

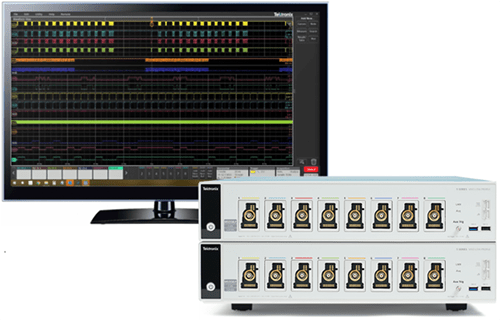

Like the benchtop 5 Series MSO, the MSO58LP offers, an optional arbitrary/function generator output, and a built-in digital voltmeter and trigger frequency counter. And, if you plug in an external touch-capable monitor you can experience the same revolutionary pinch-swipe-zoom user experience as if you were in front of the benchtop 5 Series MSO.

Experience the Performance Difference

The 5 Series MSO Low Profile's performance captures accurate waveform data with the best possible signal integrity and vertical resolution for seeing small waveform details.

By having up to a 6.25 GS/s sample rate on all channels (more than 5x oversampling), better noise performance and fine timing resolution is achieved. And with the addition of the optional 500 Mpts record length which provides 80 ms of acquisition time at the highest sample rate (6.25 GS/s), long time captures are enabled while maintaining high-timing resolution for more accurate measurements.

Industry Leading Vertical Resolution

The 5 Series MSO Low Profile provides the performance to capture the signals of interest while minimizing the effects of unwanted noise when you need to capture high-amplitude signals while seeing smaller signal details.

Its High Res mode applies a hardware-based unique Finite Impulse Response (FIR) filter based on the selected sample rate. The FIR filter maintains the maximum bandwidth possible for that sample rate while preventing aliasing and removing noise from the oscilloscope amplifiers and ADC above the usable bandwidth for the selected sample rate. High Res mode always provides at least 12 bits of vertical resolution and extends all the way to 16 bits of vertical resolution at ≤ 125 MS/s sample rates.

Spectrum View

Tektronix's patented Spectrum View technology provides both a decimator for the time-domain and a digital downconverter for the frequency-domain behind each FlexChannel. The two different acquisition paths let you simultaneously observe both time- and frequency-domain views of the input signal with independent acquisition settings for each domain.

Combine multiple high-speed digitizers

Turn two or more remote digitizers into a single virtual instrument. Use TekScope PCsoftware to get fast results from multiple instruments, without programming.

• View all channels simultaneously

• Rearrange or group channels

• Unlimited automated measurements

• Easy Ethernet access

• High speed data transfers with TekHSI enabled through both TekScope PC and a standalone python package

Get the analysis capability of an award-winning oscilloscope on your PC. Analyze waveforms anywhere, anytime. The basic license lets you view and analyze waveforms, perform many types of measurements and decode the most common serial buses - all while remotely accessing your oscilloscope. Advanced license options add capabilities such as multi-scope analysis, more serial bus decoding options, jitter analysis and power measurements. TekScope Multi-Scope enables you to connect and download data from up to 4 instruments (16-32 max channels) for easy viewing and cross-instrument analysis.

Upgrade Automated Test Equipment (ATE) Systems Fast

All 5 and 6 Series Low Profile instruments include a Programmatic Interface (PI) Translator. When enabled, the PI Translator acts as an intermediate layer between your test application and the digitizer. The PI translator recognizes a subset of legacy commands from the popular DPO/MSO5000B, DPO7000C, and DPO70000C oscilloscope platforms and translates them on the fly into supported commands. You can customize its behavior to minimize the amount of effort required when transitioning from obsolete instruments to the newest Tektronix platform.

In The Box

• Low Profile Mixed Signal Oscilloscope

• Rackmount attachments installed

• Installation and safety manual

• Embedded Help

• Power cord

• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration

• Three-year warranty covering all parts and labor on the instrument.
